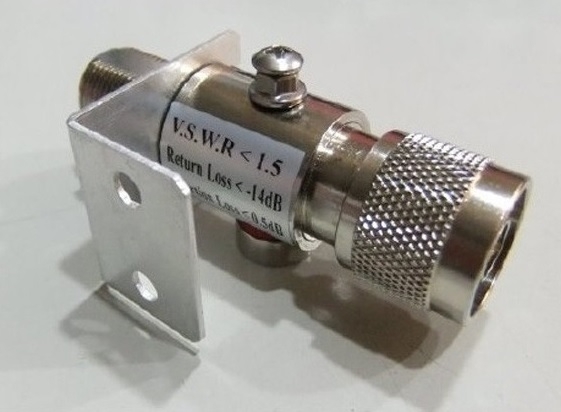

DC~6 GHz LIGHTNING ARESTOR

DC~6 GHz LIGHTNING ARESTOR
DC~6 GHz LIGHTNING ARESTOR
DC~6 GHz LIGHTNING ARESTOR
Product Description
1.Frequency Range: DC-6GHz
2.V.S.W.R: <1.5(MAX)
3.Return Loss: <-14dB
4.Insertion Loss:  0.5dB
5.DC Spark Over Voltage 100V/S: 184-276V
6.Insulation Resistance:  2000 Megohms
7.Cas Tube Insulation Resistance At 100Vdc:  10G Ω
8.Impulse Spark-over Voltage 1Kv  s: 450V
9.Alternating Discharge Current: 20KA(wave8/20  s)10 Times
10.Impedance: 50 ohm
11.Capactance 1MHz Pf: <1
12.DC Holdover Voltage per ITU-T K. 12: 135V
13.Working Temperature: -40 to +85
14.Dimension(WxLxH): 22.8x68x32 mm
15.Weight: 127g
