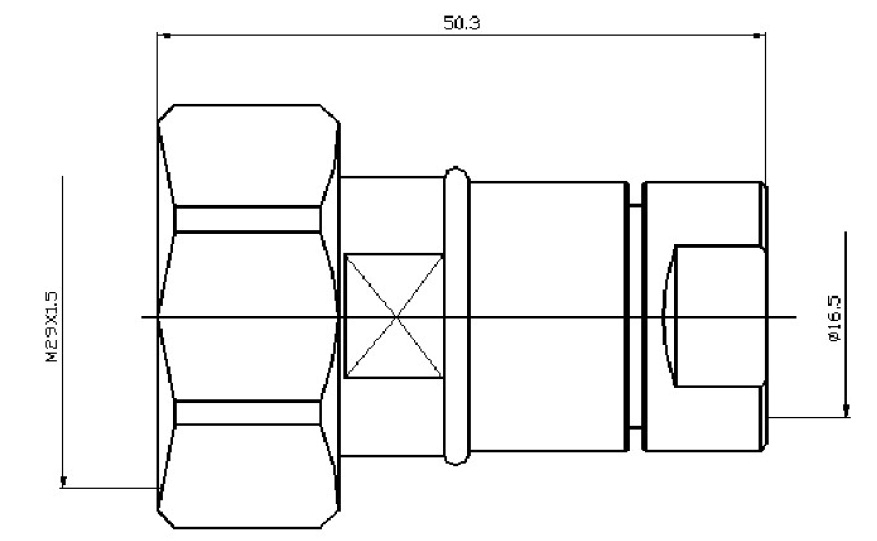

Connector 7/16 M to 1/2 RF Connectors

Connector 7/16 M to 1/2 RF Connectors
Connector 7/16 M to 1/2 RF Connectors
Connector 7/16 M to 1/2 RF Connectors
Connector 7/16 M to 1/2 RF Connectors
Product Description
•Electrical Data•
1.Characteristic Impedance: 50Ω
2.Frequency Range: 0-3 GHz
3.VSWR: ≤1.1
4.Dielectric Withstanding Voltage: ≥4000V RMS, 50Hz, at sea level
5.Dielectric Resistance: ≥10000MΩ
6.Contact Resistance(Center Contact): ≤0.4mΩ
7.Contact Resistance(Outer Contact): ≤1.5mΩ
•Mechanical Data•
1.Durability(Mating cycles):≥500
•Material and plating•
1.Body: Brass / Ni
2.Insulator: PTFE / -
3.Center Conductor: Phosphor bronze / Ag
•Environmental•
1.Temperature Range: -40°C~+85°C
