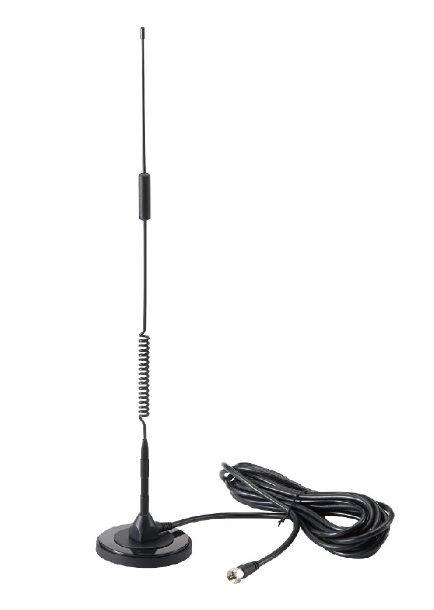

Magnetic Mount Antenna, GSM/UMTS/4G/LTE, 7dBi, SMA M
Product Description
★  LTE (4G) Magnetic Mount Antenna
  1. Frequency: 700 MHz-960 MHz / 1710 MHz-2170 MHz / 2500 MHz-2700 MHz
  2. Connector:  SMA M
  3. Impedance: 50Ω
  4. Antenna Average Gain: 2.5~7dBi
  5. VSWR: 2.0:1
  6. Gain: 2.5dBi
  7. Cable (OD): RG195 ( Ø4.95±0.1mm)
  8. Dimension: 403± 5mm

★ Compliant with ROHS directive



DATASHEET

AA-1060.pdf
